| Manufacturer | Bitmain |
|---|---|

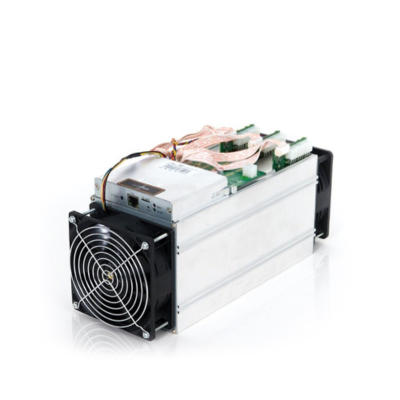

| Model | Antminer S9 (13.5Th) |
| Release | September 2017 |
| Size | 135 x 158 x 350mm |
| Weight | 4200g |
| Chip boards | 3 |
| Chip name | BM1387 |
| Chip size | 16nm |
| Chip count | 189 |
| Noise level | 85db |
| Fan(s) | 2 |
| Power | 1323W |
| Wires | 10 * 6pins |
| Voltage | 11.60 ~13.00V |
| Interface | Ethernet |
| Temperature | 0 – 40 °C |
Bitmain Antminer S9 (13.5Th) mining the SHA 256 algorithm has a maximum hashrate of 13.5Th/s at a power consumption of only 1323W. Weighing around 4.2kgs, Bitmain Antminer S9 gives an energy efficiency of 98 j/Th. The noise level of Bitmain Antminer S9 is 85db.
Launched by Bitmain in September 2017, Antminer S9 is one of the reliable Bitcoin miners that many leverage for their Bitcoin mining needs. Equipped with two high-speed fans, the Antminer S9 dissipates heat instantly while aiding efficient cooling and optimal performance. The recommended temperature for S9 is 0 – 40 °C.
